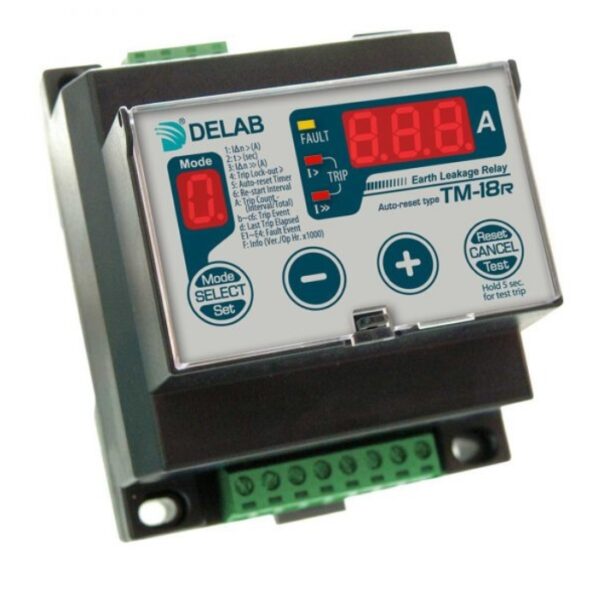

TM-18R (Auto-reset type)

Category : Digital Earth Leakage Relay

Earth Leakage Relay

Features

True RMS Measurement with SPARC and DCOI Algorithm
Fundamental Signal Detection
Real Time Display of IΔN in Ampere
Fault / lo-set & hi-set Trip LED Indication
Fault Start Event Recording
Trip Event Memory
(non-volatile 7 previous records)
Fault Start Event Memory
(non-volatile 4 previous records)
Selectable Frequency (50/60 Hz)
Trip Lock-out contact for K2
Last Trip Elapsed Time (up to 99days)
Self Reclosing / Auto-reset
Re-start Interval Setting
Auto Z.C.T. Detection
Software Lock to Prevent Unauthorized Setting
35mm wide DIN Rail Mount
Complies with: IEC-60255-26/27; BS EN 50121-5 Standards

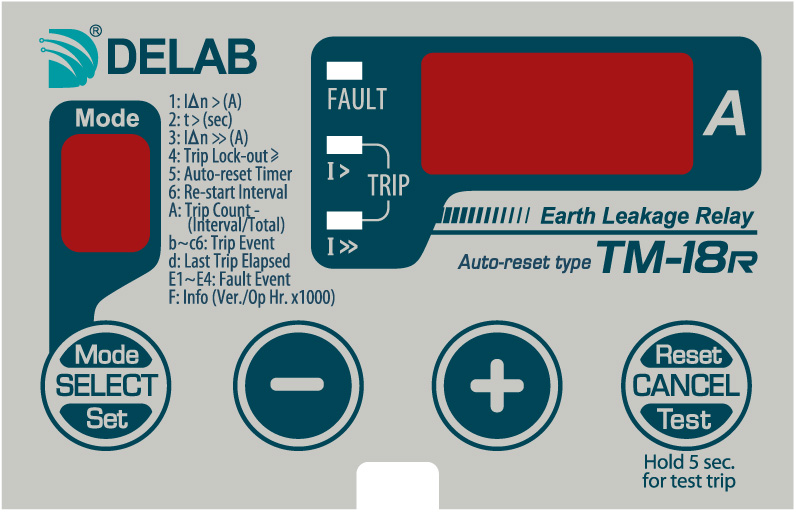

Front Panel

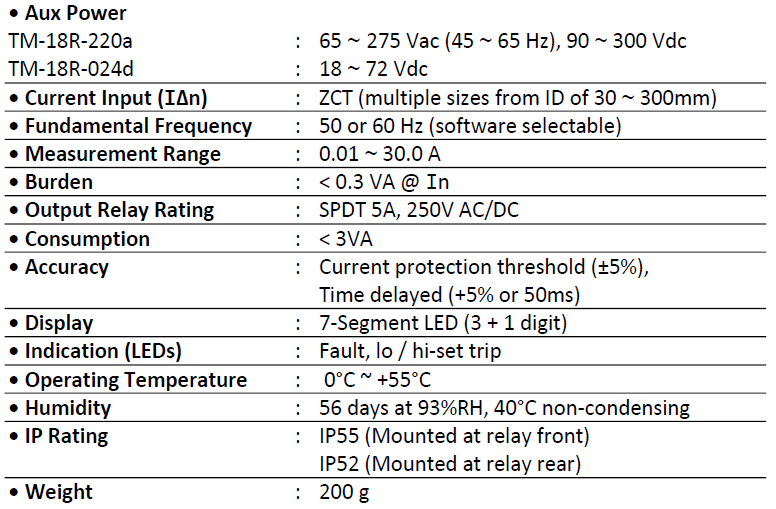

Tech Data

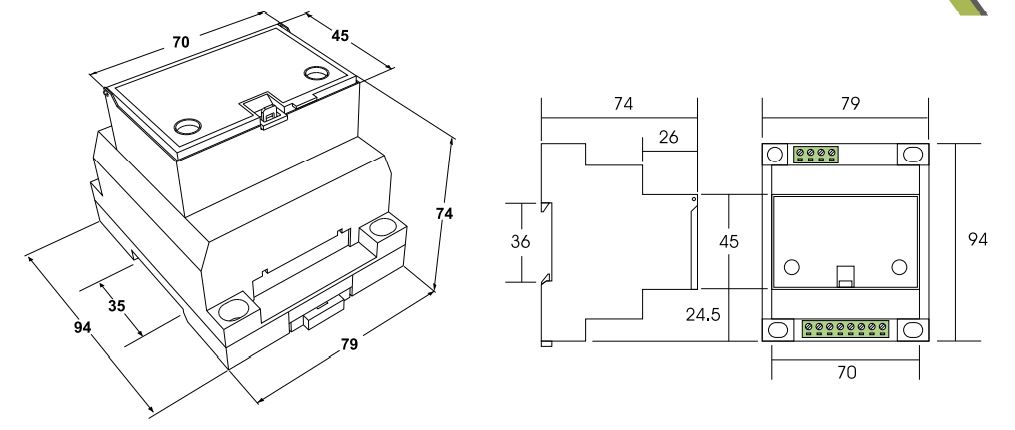

Dimension

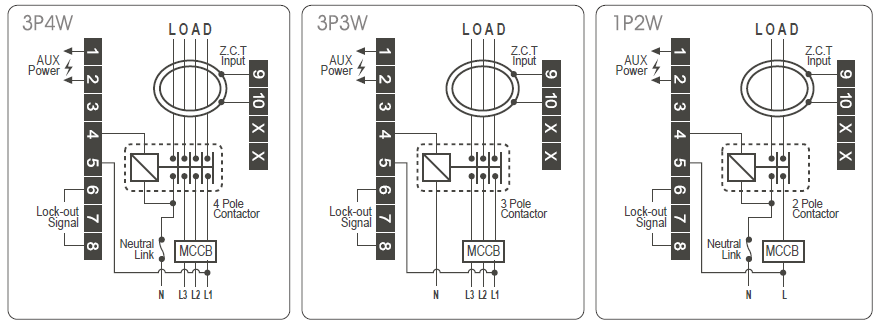

Wiring

Order Enquiry

PDFs Download

DELAB-Digital-Earth-Leakage-Relay-Din-rail-type-TM-18c_18R-Catalog-1.pdf DELAB-Digital-Auto-reset-Earth-Leakage-Relay-Din-rail-type-TM-18R-User-Guide.pdf DELAB-Digital-Auto-reset-Earth-Leakage-Relay-Din-rail-type-TM-18R-Auto-Cad-File.dwg

Product Video

Product Video 1
