Products

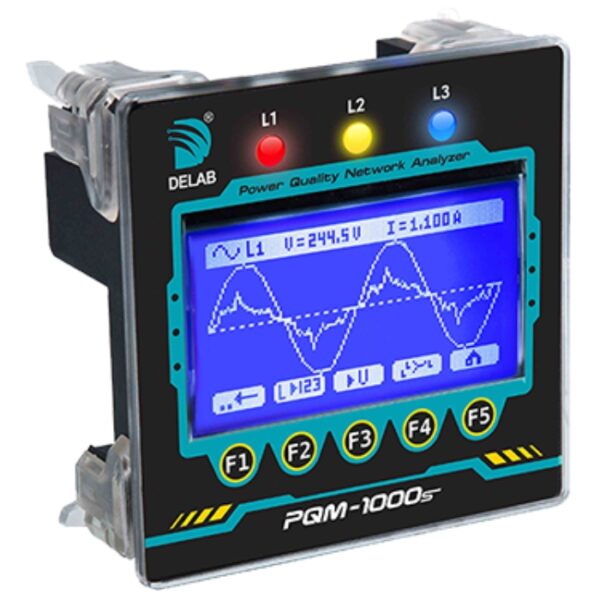

PQM-1000s

Category :

Power Quality Network Analyzer

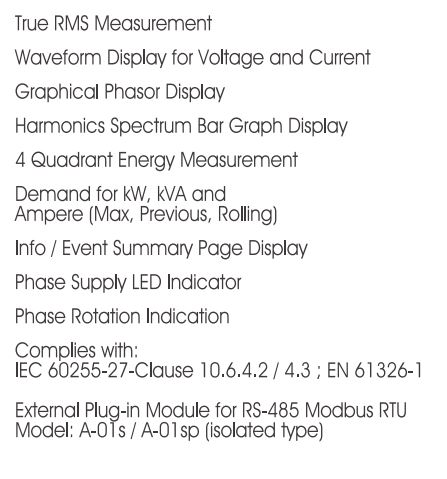

Features
  • True RMS Measurement
  • Waveform Display for Voltage and Current
  • Graphical Phasor Display
  • Harmonics Spectrum Bar Graph Display
  • 4 Quadrant Energy Measurement
  • Demand for kW, kVA and Ampere (Max, Previous, Rolling)
  • Info / Event Summary Page Display
  • Phase Supply LED Indicator
  • Phase Rotation Indication
  • Complies with:
    IEC 60255-27-Clause 10.6.4.2 / 4.3 ; EN 61326-1
  • External Plug-in Module for RS-485 Modbus RTU
    Model: A-01s / A-01sp (isolated type)
  • External Data Logging Module
    Model: B-01s (micro SD card / max. storage 32GB)
    (Compatible only with firmware version 2.0.02 onwards)

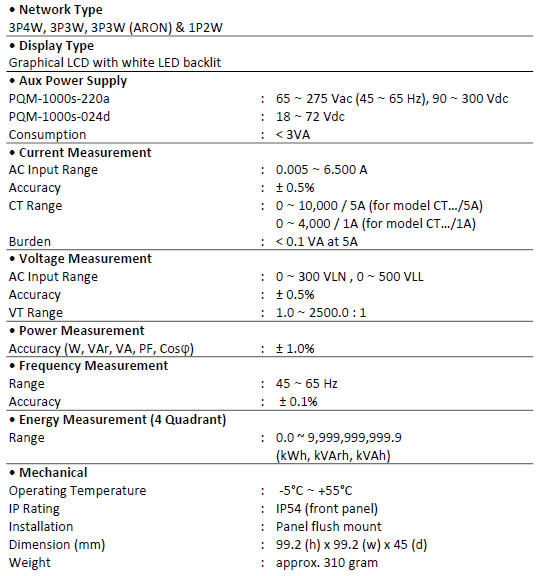

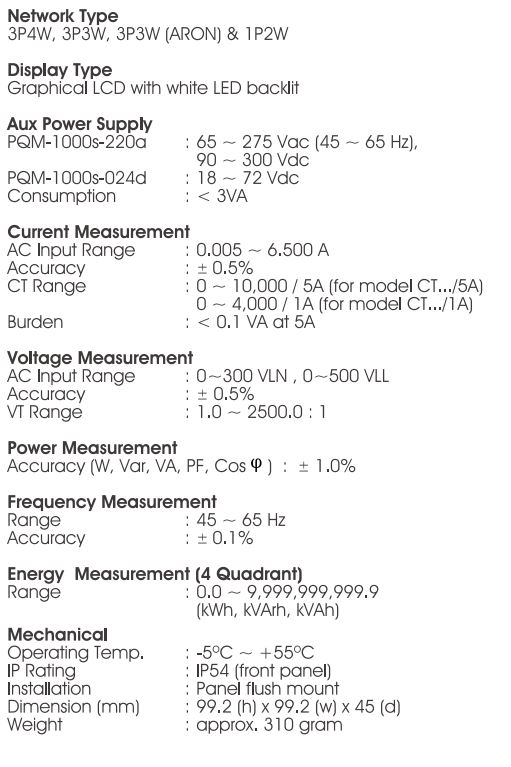

Tech Data

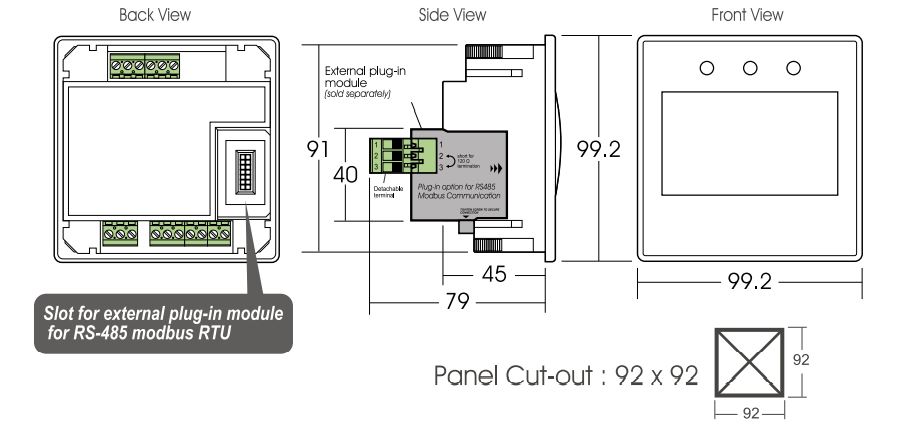

Dimension

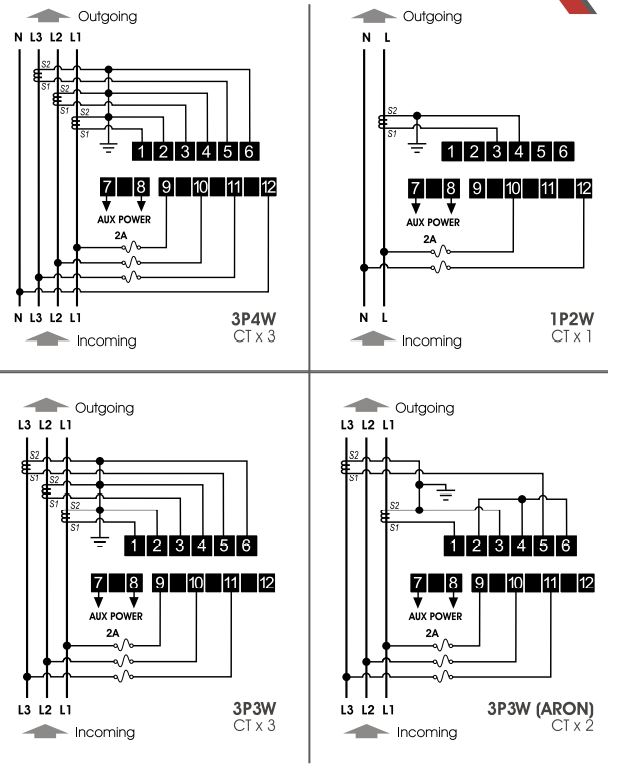

Wiring

Order Enquiry

    PDFs Download
    DELAB-Digital-Power-Quality-Network-Analyzer-PQM-1000s-Catalog.pdf DELAB-Digital-Power-Quality-Network-Analyzer-PQM-1000s-User-Guide.pdf Harmonic-Simulation.xlsx Modbus-Reg-Map-PQM1000s-2.0.02-.pdf DELAB-Digital-Power-Quality-Network-Analyzer-PQM-1000s-Auto-Cad-File.dwg
    Product Video
    Product Video 1
